Commerical Lift

• Capacity
• 100 kg

• Car Dimension
• 500 x 500 x 800 mm (customizable)

• Control Device
• Other, Microprocessor-based control panel

• Door Opening Size
• 500 x 600 mm

• Drive Type
• Other, Traction motor drive or chain drive

• Hoist Way Size
• Min. 800 x 900 mm

• Inclination
• Vertical

• Load Capacity
• 50 kg to 300 kg

• Machine Room Size
• Compact, as required by model

• Material
• other Sheet, Stainless steel / Powder-coated steel

• Max. Lifting Height
• Up to 20 m

• Max. Lifting Weight
• 300 kg

• Mechanism Type
• Other, Electrical and mechanical

• Noise Level
• <55 dB

• Overhead Height
• Min. 2500 mm

• Pit Depth
• Min. 450 mm

• Power Supply
• Single Phase / Three Phase

• Safety Device
• Other, Overload protection, emergency stop, interlocking system

• Speed
• 0.3 m/s - 0.5 m/s

• Type

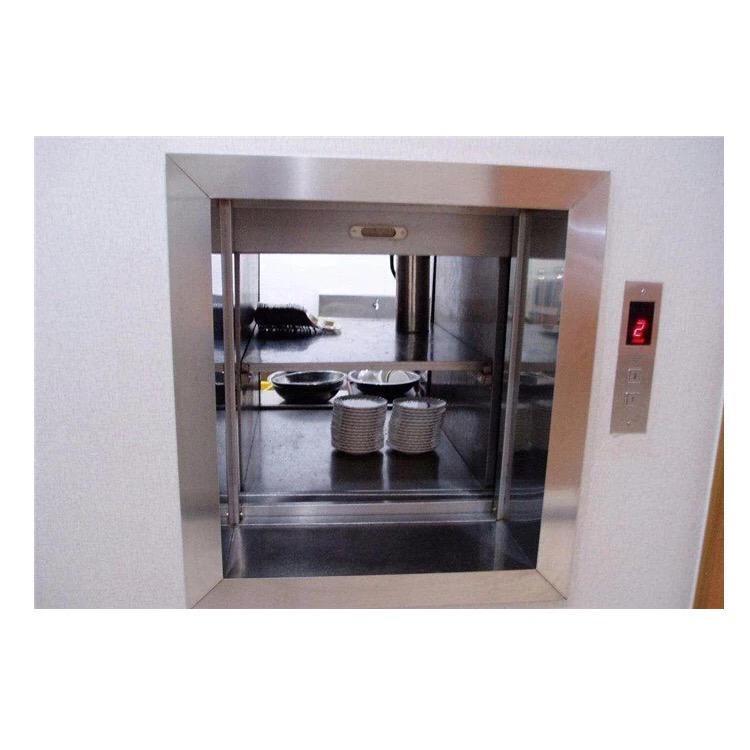

• Other, Electric Dumbwaiter

• Usage
• Other, Restaurants, Hotels, Hospitals, Library, Offices, Private residences

• Voltage
• 220V / 380V

• Working Temperature
• -10C to 50C

• Capacity
• 8-20 Persons (Stretcher/Bed Capacity)

• Car Dimension
• 1400 mm x 2400 mm (Standard)

• Control Device
• Other, Microprocessor-Based Controller

• Door Opening Size
• 900 mm to 1100 mm (center/opening options)

• Drive Type
• Other, VVVF (Variable Voltage Variable Frequency)

• Hoist Way Size
• 2200 mm x 2600 mm and up

• Inclination
• 0 (Vertical)

• Load Capacity
• 630 kg - 1600 kg

• Machine Room Size
• 2200 mm x 3900 mm

• Material
• other Sheet, Stainless Steel Cabin Interior, Powder Coated or SS Doors

• Max. Lifting Height
• Up to 75 meters

• Max. Lifting Weight
• As per Capacity (up to 1600 kg)

• Mechanism Type
• Other, Traction / Hydraulic

• Noise Level
• 55 dB(A)

• Overhead Height
• 4200 mm - 4800 mm

• Pit Depth
• 1400 mm - 1700 mm

• Power Supply
• Three Phase, 50 Hz

• Safety Device
• Other, Emergency Alarm, Interlock, Overload Sensor, Emergency Stop, Safety Gear

• Speed
• 0.63 - 1.6 m/s

• Type
• Other, Bed / Stretcher / Hospital Passenger Lift

• Usage
• Other, Hospital, Medical Center, Healthcare Facility

• Voltage
• 380V / 415V AC

• Working Temperature
• -10C to 50C

• Capacity
• 300 kg - 10,000 kg

• Car Dimension
• Customized as per requirement

• Control Device
• Other, Push button / Remote control

• Door Opening Size
• Customizable

• Drive Type
• Other, Hydraulic / Electric

• Hoist Way Size
• As per site requirement

• Inclination
• 0 degree (Vertical lifting)

• Load Capacity
• Up to 10 tons

• Machine Room Size
• Not required (Hydraulic type)

• Material
• other Sheet, High-strength steel

• Max. Lifting Height
• Up to 12 meters

• Max. Lifting Weight
• As per model (300 kg - 10,000 kg)

• Mechanism Type

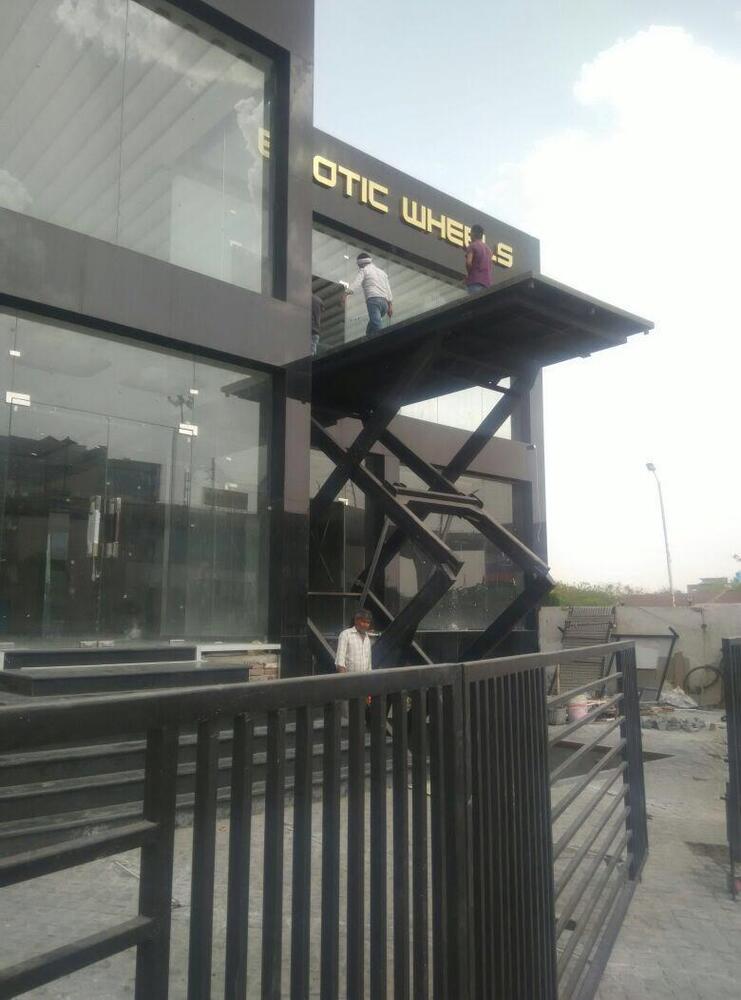

• Other, Hydraulic Scissor Mechanism

• Noise Level
• < 70 dB

• Overhead Height
• Standard: 1800 mm / Customized

• Pit Depth
• Standard: 300 mm / Customized

• Power Supply
• 3 Phase, 50Hz / 60Hz

• Safety Device
• Other, Emergency stop, safety locks, overload protection

• Speed
• 3-6 m/min

• Step Width
• N/A (Platform lift)

• Type
• Other, Stationary / Mobile

• Usage
• Other, Material Handling, Warehouse, Loading Docks, Maintenance

• Voltage
• 380V / 415V / Customized

• Working Temperature
• -10C to +45C

• Capacity
• 1 Ton to 5 Ton

• Car Dimension
• Customized as per requirement (Standard: 1500 x 1500 mm)

• Control Device
• Other, Push Button / Remote Control

• Door Opening Size
• 1000 mm to 1500 mm

• Drive Type
• Other, Hydraulic / Electric

• Hoist Way Size
• Customized as per site requirement

• Inclination
• 0 (Vertical lift)

• Load Capacity
• 1000 kg - 5000 kg

• Machine Room Size
• No Separate Room Required / Compact Design

• Material
• other Sheet, Mild Steel / Stainless Steel Structure

• Max. Lifting Height
• Up to 30 meters

• Max. Lifting Weight
• 5000 kg

• Mechanism Type
• Other, Hydraulic / Traction

• Noise Level
• < 65 dB

• Overhead Height
• Minimum 2400 mm

• Pit Depth
• 150 mm - 300 mm

• Power Supply
• 3 Phase, 50-60 Hz

• Safety Device
• Other, Overload Protection, Emergency Stop, Safety Limit Switches, Interlocking

• Speed
• 0.12 - 0.2 m/s

• Type
• Other, Vertical Goods Lift

• Usage
• Other, Industrial Warehouses, Factories, Storage Units

• Voltage
• 380V / 415V

• Working Temperature
• -10C to +50C

• Capacity
• 1000 kg

• Car Dimension
• 1800 mm x 1500 mm x 2000 mm

• Control Device
• Other, Push Button Control

• Door Opening Size
• 1200 mm x 2000 mm

• Drive Type
• Other, Hydraulic / Electric

• Hoist Way Size
• 2000 mm x 1700 mm

• Load Capacity
• 1000 kg

• Machine Room Size
• 2000 mm x 2000 mm

• Material
• other Sheet, Mild Steel

• Max. Lifting Height
• 12 m

• Max. Lifting Weight
• 1000 kg

• Mechanism Type
• Other, Hydraulic / Traction

• Noise Level
• <65 dB

• Overhead Height
• 3200 mm

• Pit Depth
• 600 mm

• Power Supply
• 3 Phase, 50 Hz

• Safety Device
• Other, Overload Protection, Emergency Stop, Interlock

• Speed
• 0.5 m/s

• Type
• Other, Commercial Goods Lift

• Usage
• Other, Factories, Warehouses, Commercial Buildings

• Voltage
• 415 V

• Working Temperature
• -10C to +60C

• Capacity
• 500 kg to 2000 kg

• Car Dimension
• Customizable (Standard: 1100 x 2100 mm)

• Control Device
• Other, VFD control/PLC control

• Door Opening Size
• 800 mm to 1200 mm

• Drive Type
• Other, Traction/ Hydraulic

• Hoist Way Size
• Adaptable as per car size

• Inclination
• 0 (Vertical Lifting)

• Load Capacity
• As per requirement

• Machine Room Size
• Adaptable

• Material
• other Sheet, Stainless Steel/ MS

• Max. Lifting Height
• Up to 50 m

• Max. Lifting Weight
• 2000 kg

• Mechanism Type
• Other, Electric

• Noise Level
• <=65 dB(A)

• Overhead Height
• 4500 mm (min.)

• Pit Depth
• 1500 mm (min.)

• Power Supply
• Three-phase AC

• Safety Device
• Other, Emergency Stop, Overload protection, Safety sensor, Door interlock

• Speed
• 0.5 m/s to 1.5 m/s

• Type
• Other, Passenger cum Goods lift

• Usage
• Other, Passenger & Goods transport

• Voltage
• 380V/415V

• Working Temperature
• -10C to +50C
